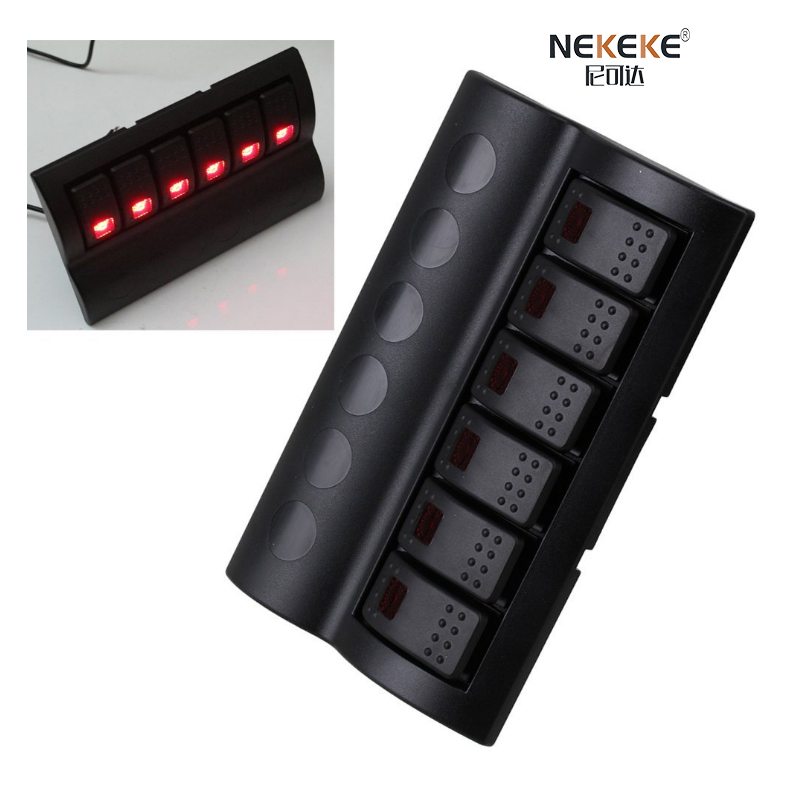

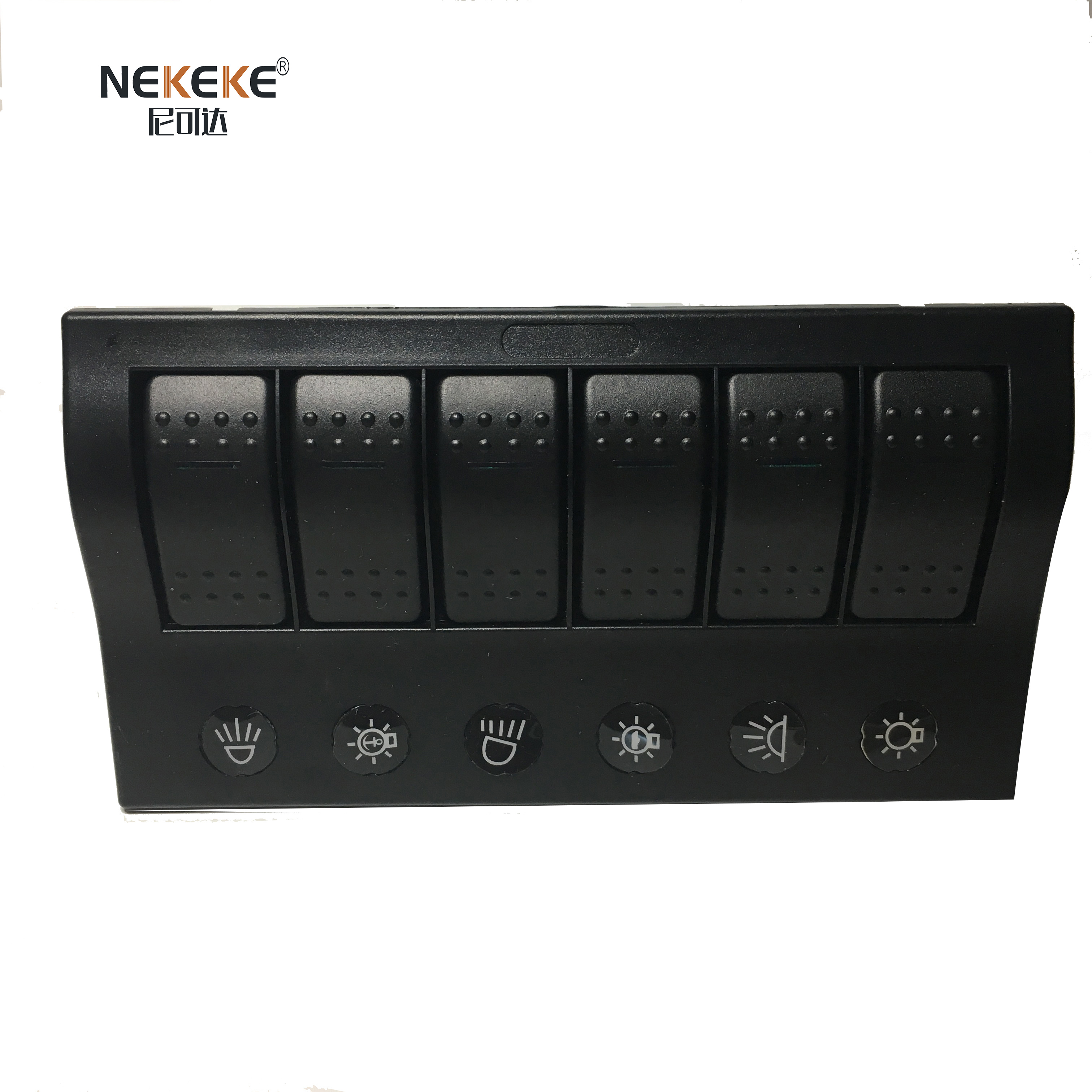

6P wave switch panel
Other Information: $****
Series: BP
Material: ABS
Color: Black
Model: BP6S
Quantity:
Detail

Name:6P switch panel

Model:BP6S
Material Description:ABS(White optional)
Led:RED or Green(Color aberration)

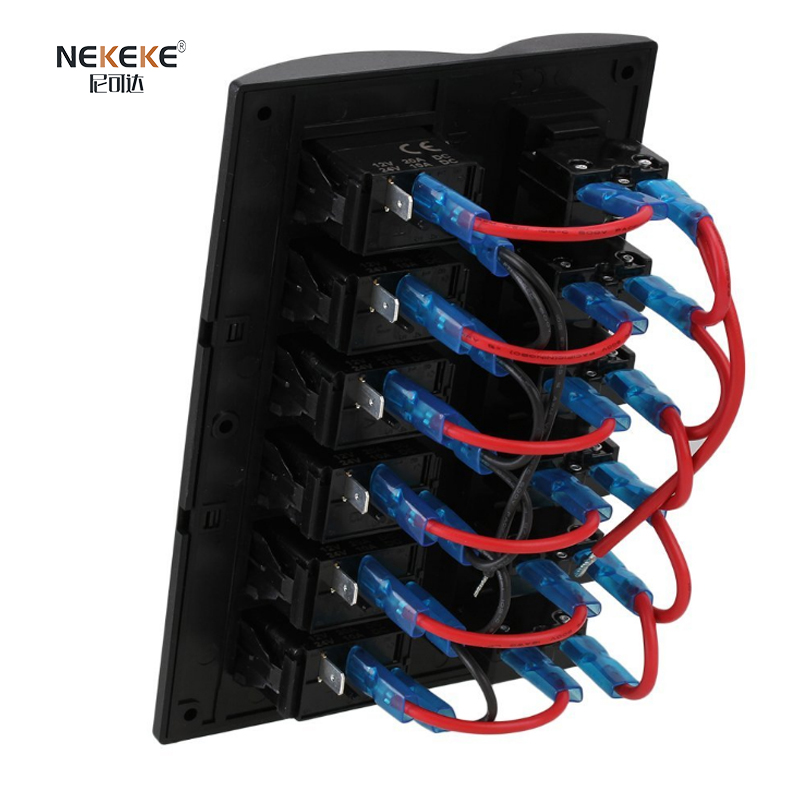

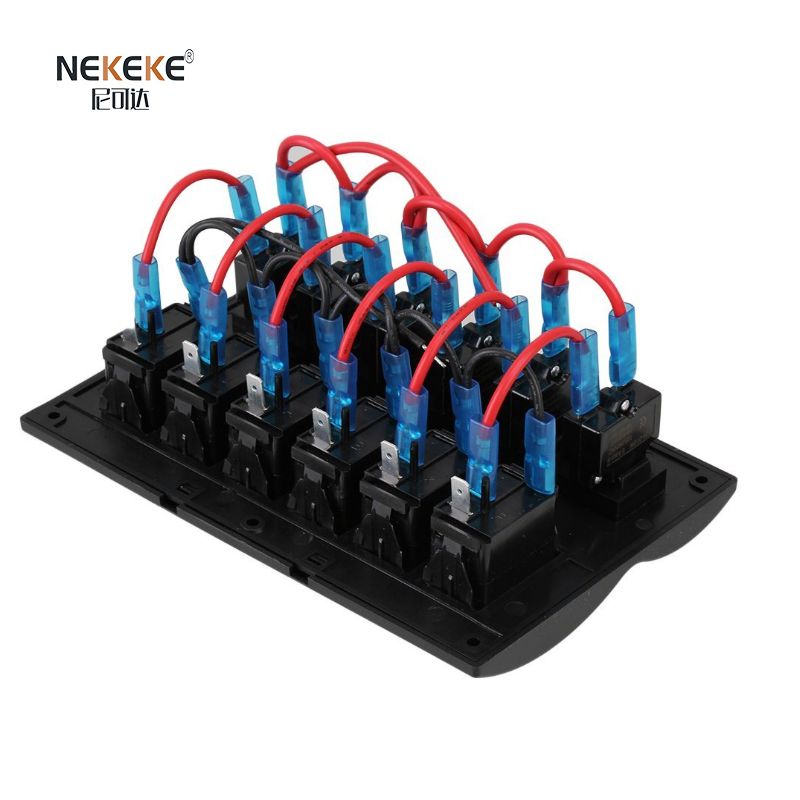

Installation:Pre-wired
Switches Available:6 gang
Amp Rating per circuit:15amp Max
Rocker Switch:6
Circuit breakers:6(10A x2;15A x 1,5A×3)
Loop Circuit:5(ON-OFF);1((ON)-OFF,This is for horn)
Switch System: Water-resistant enclosed
Rocker switch
Rating:DC 12V,24V
Dielectric Strength:AC 1500V 1minute Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Dimensions:18(Width)x13(Height)x11(Depth)cm
Drill diameter size: 2.5cm

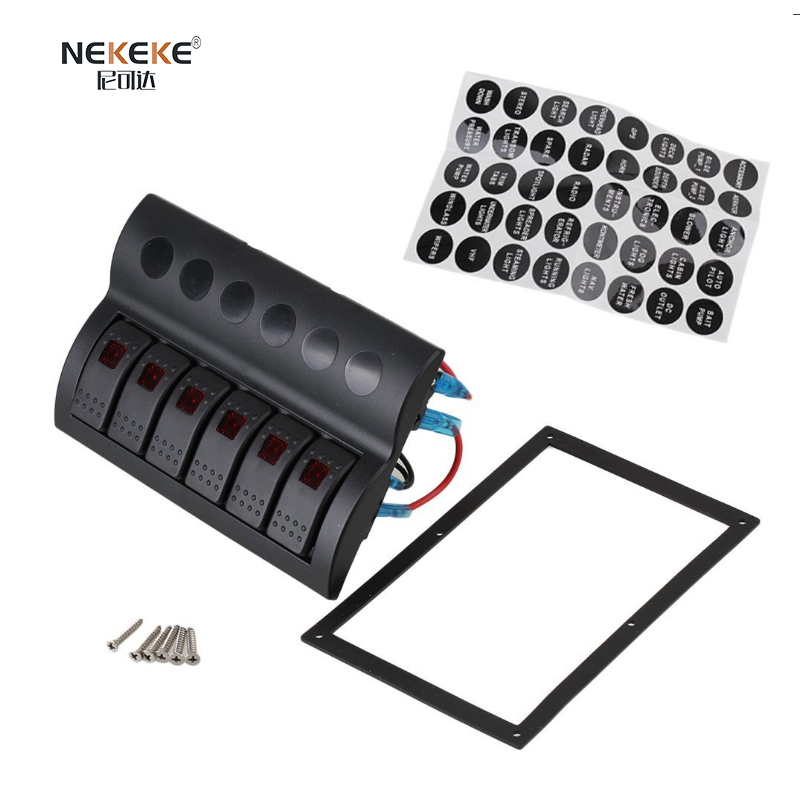

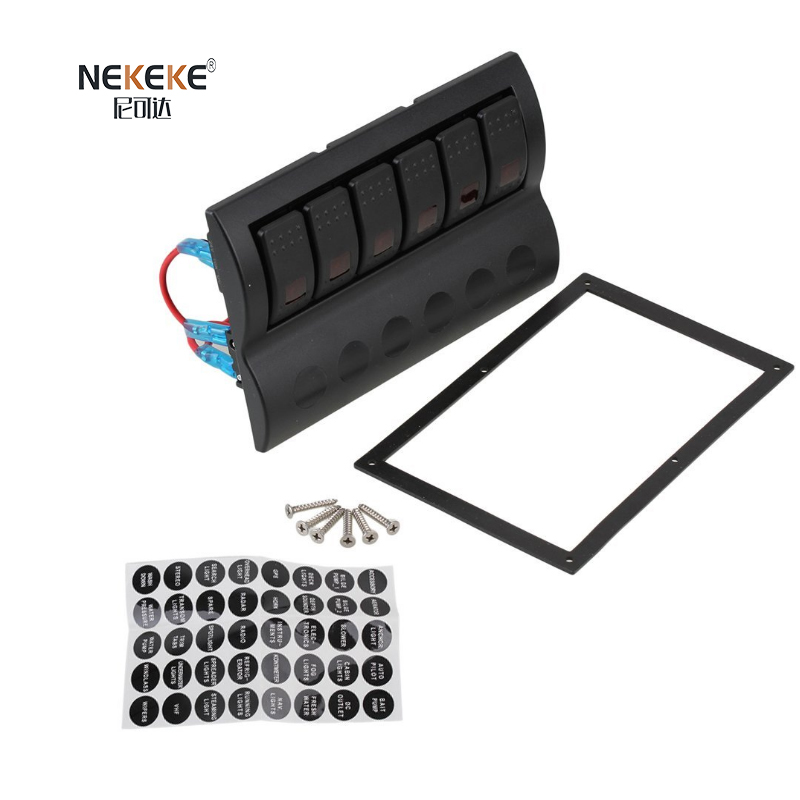

Package
1 x 12V/24V LED ROCKER SWITCH PANEL
1 x pre-printed labels
1 x Silicone Gasket
4 X Screws
